Raise - Concept for a multi-height table
User Centred Research; Concept Design; Concept Models; Ergonomic Assessment: Test Rig Prototypes;

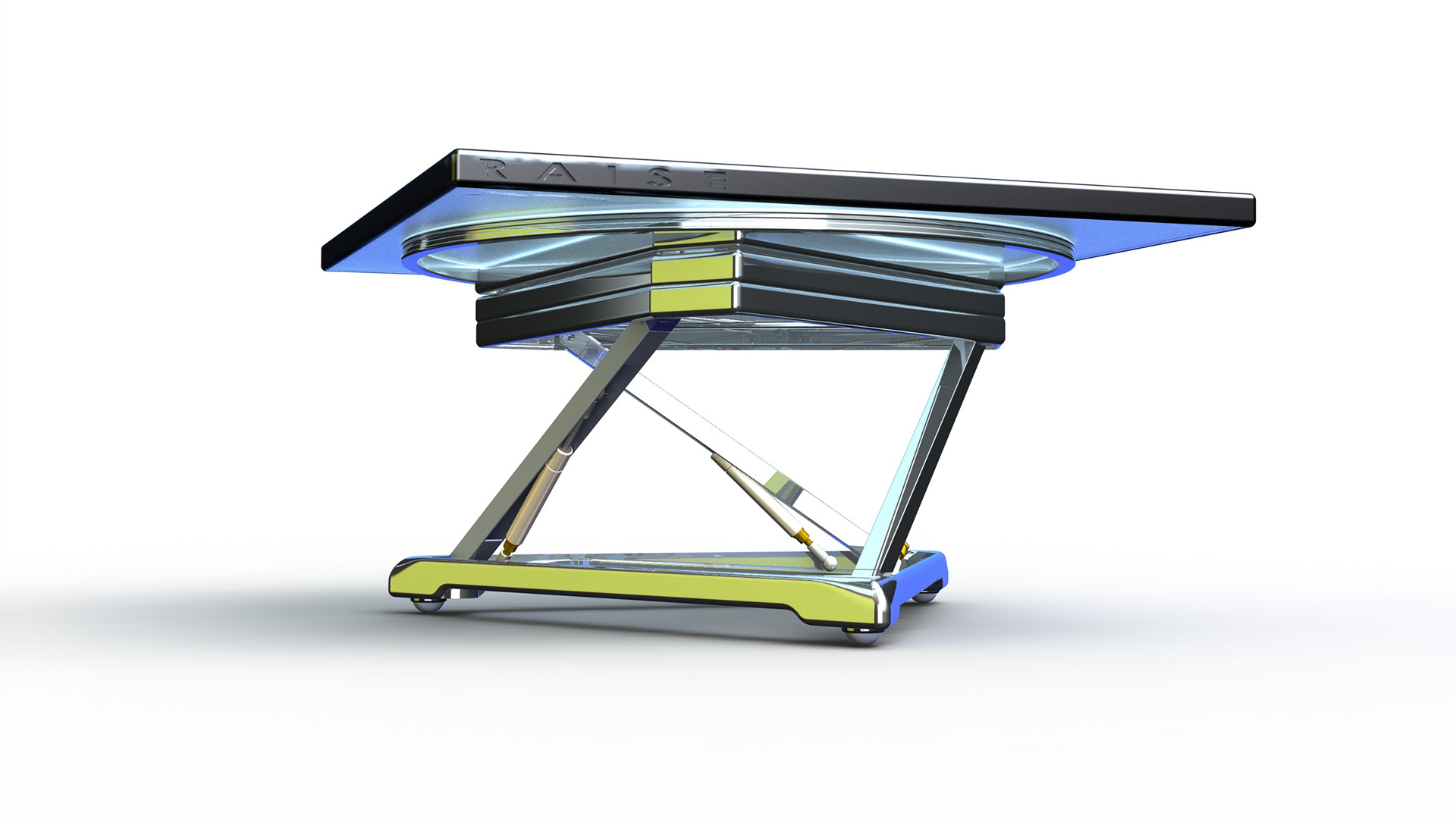

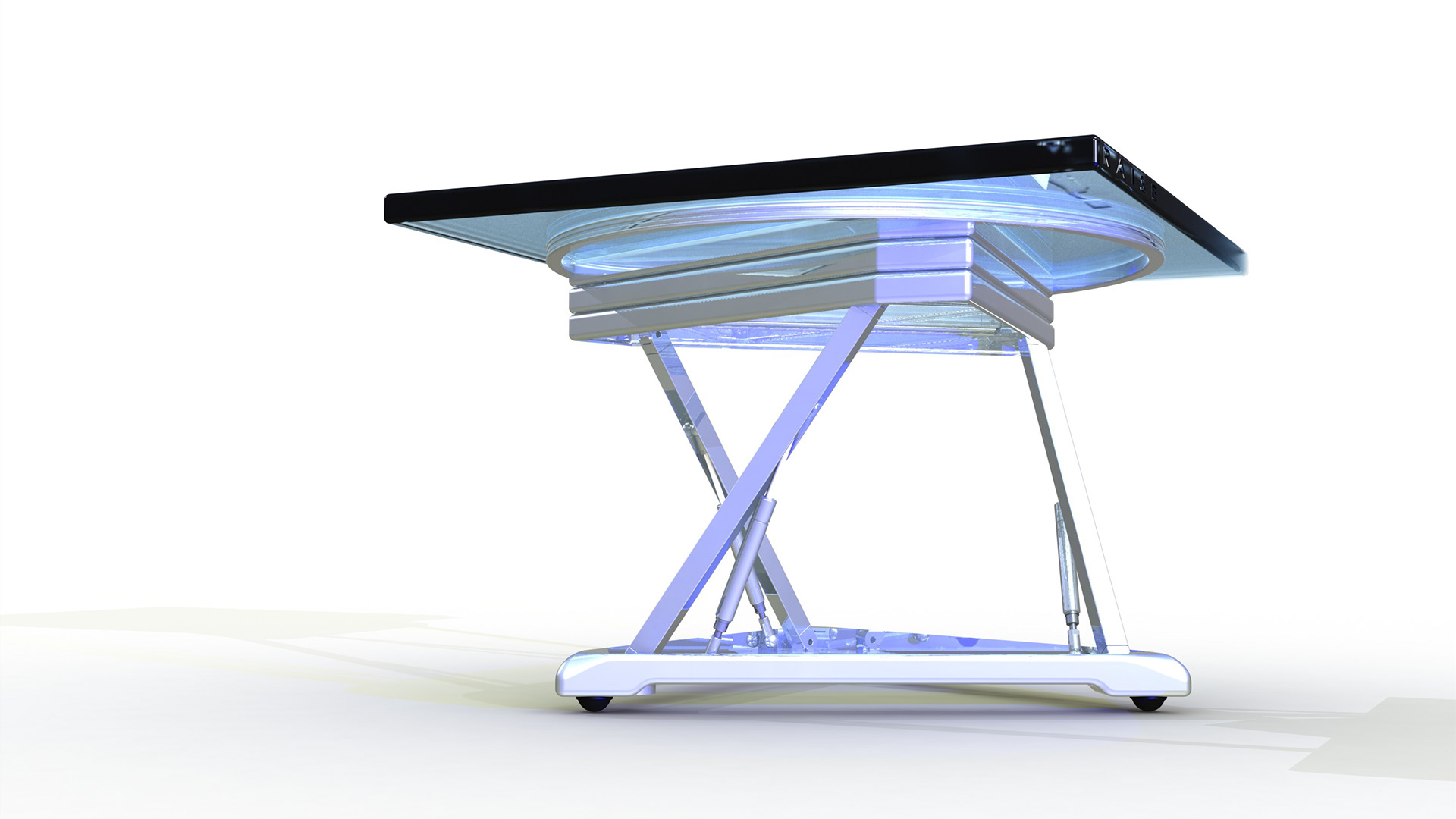

SolidWorks CAD full assembly concept model; Proof of concept test rig prototype

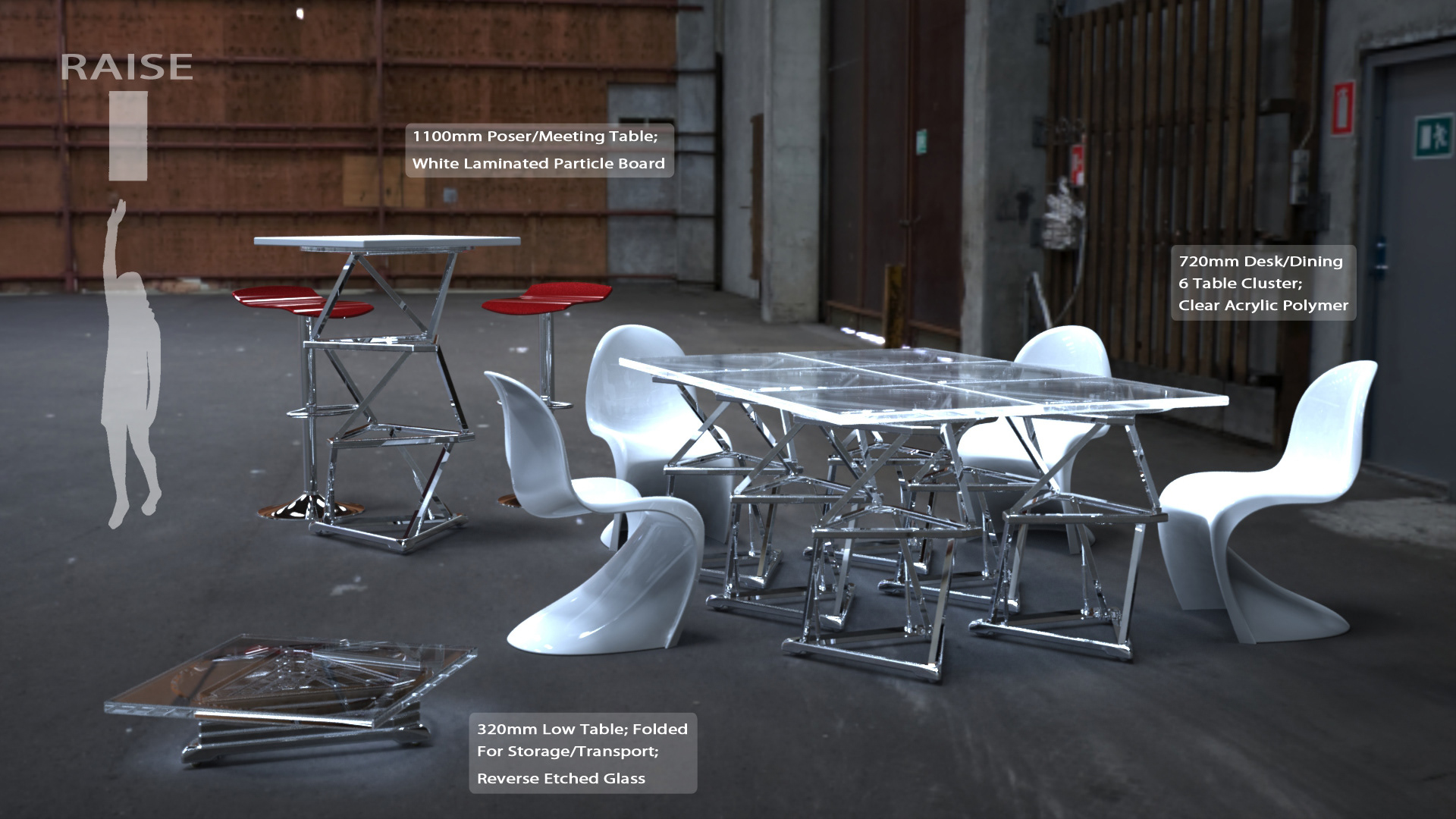

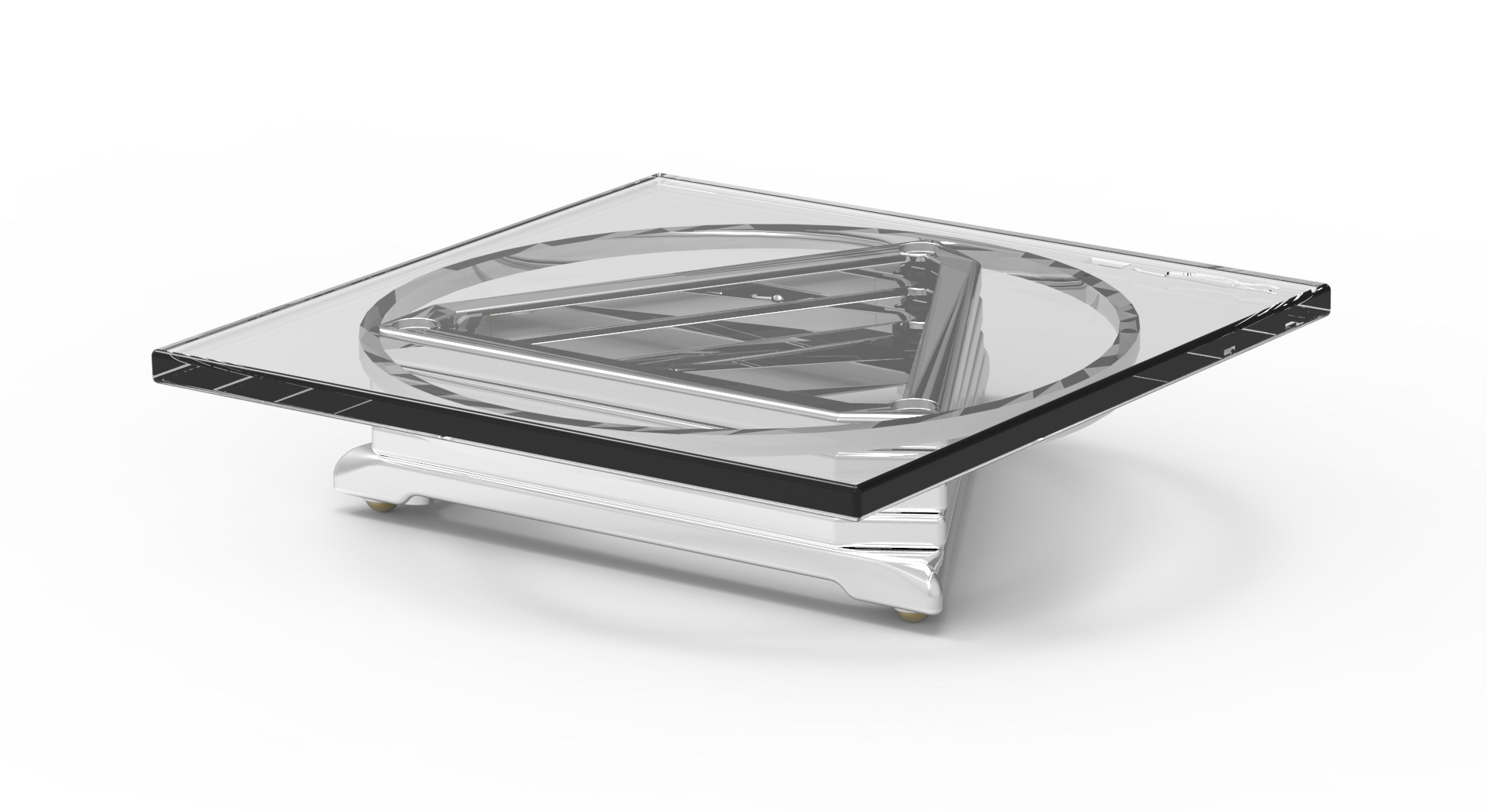

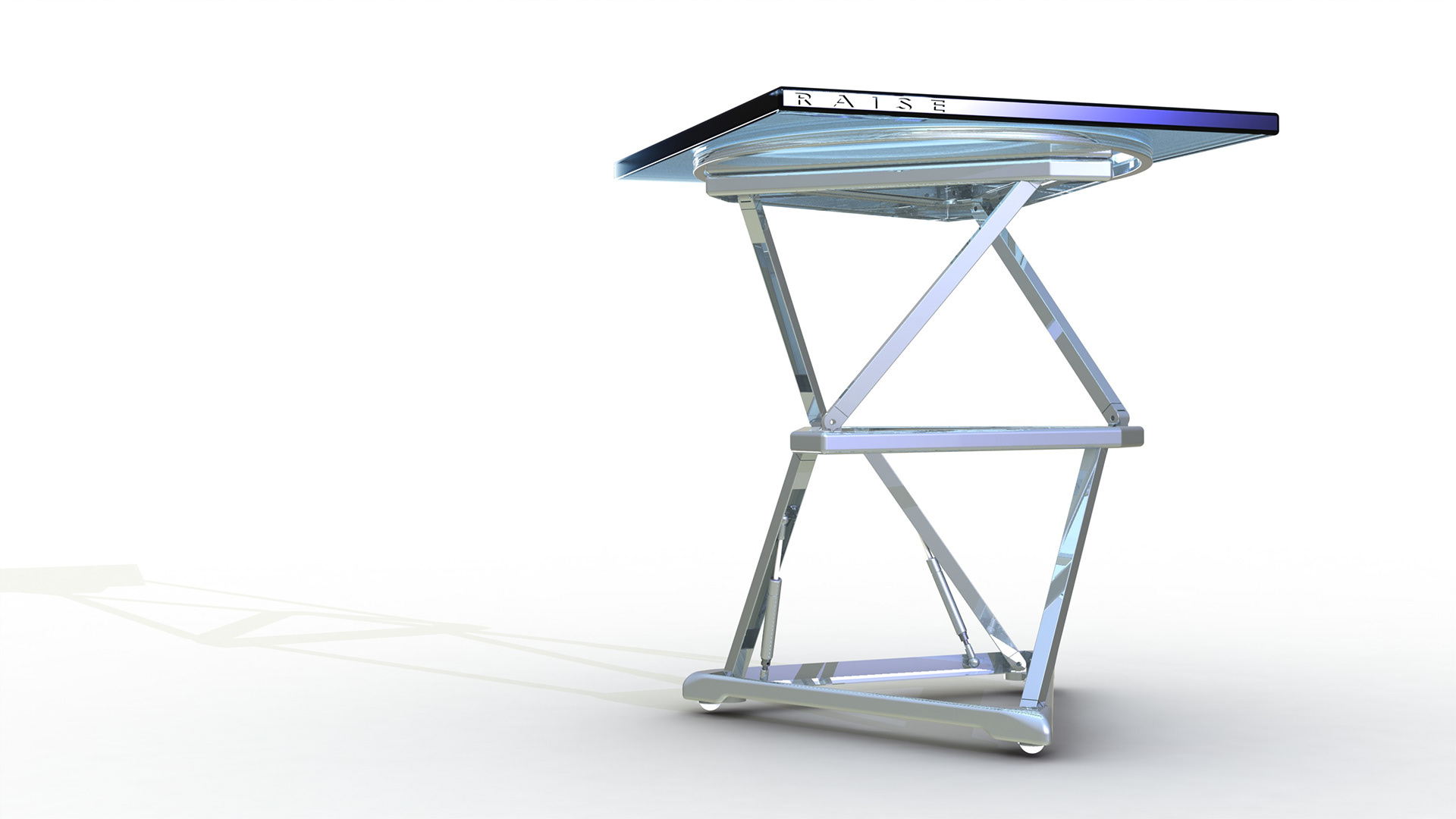

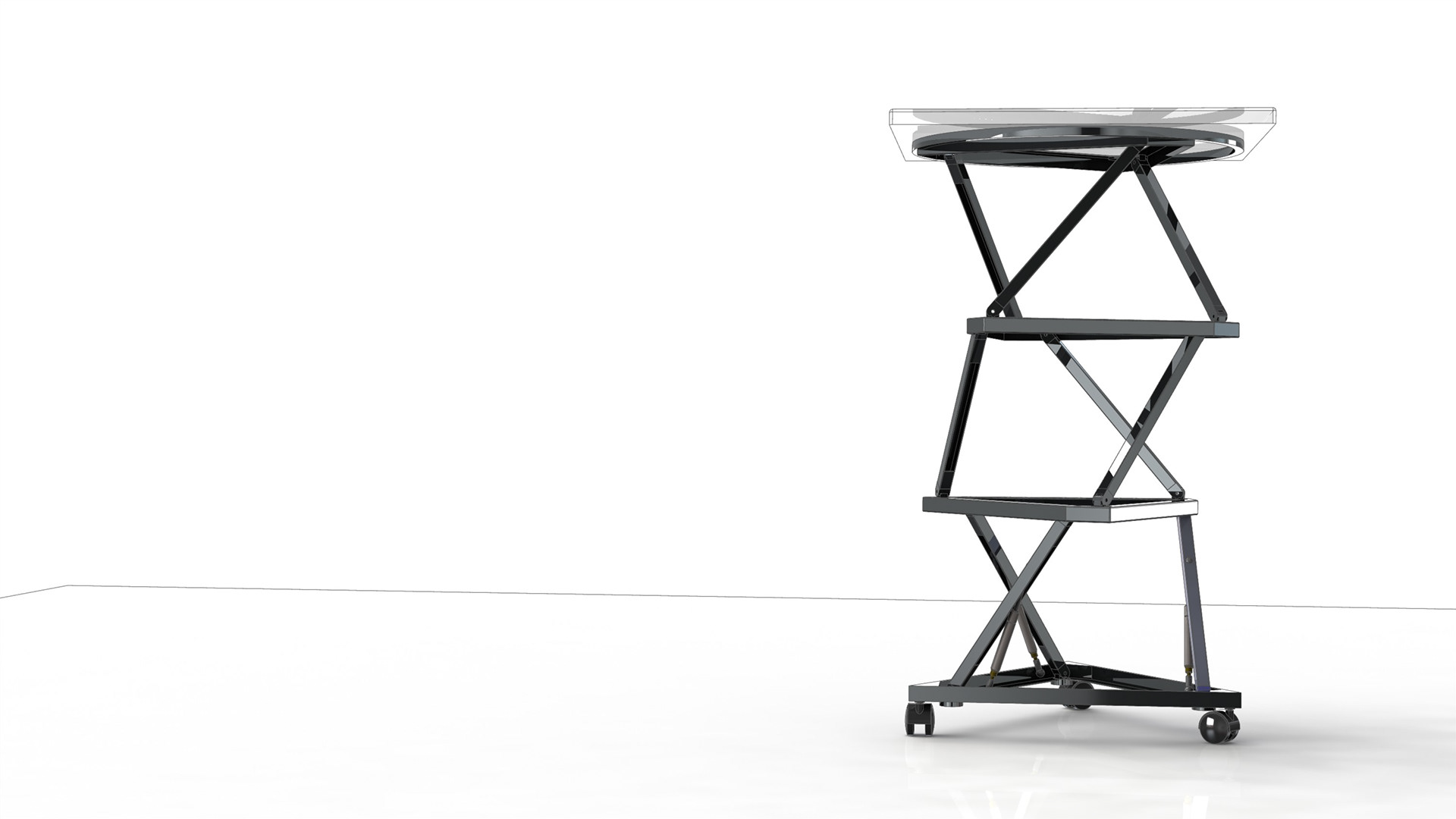

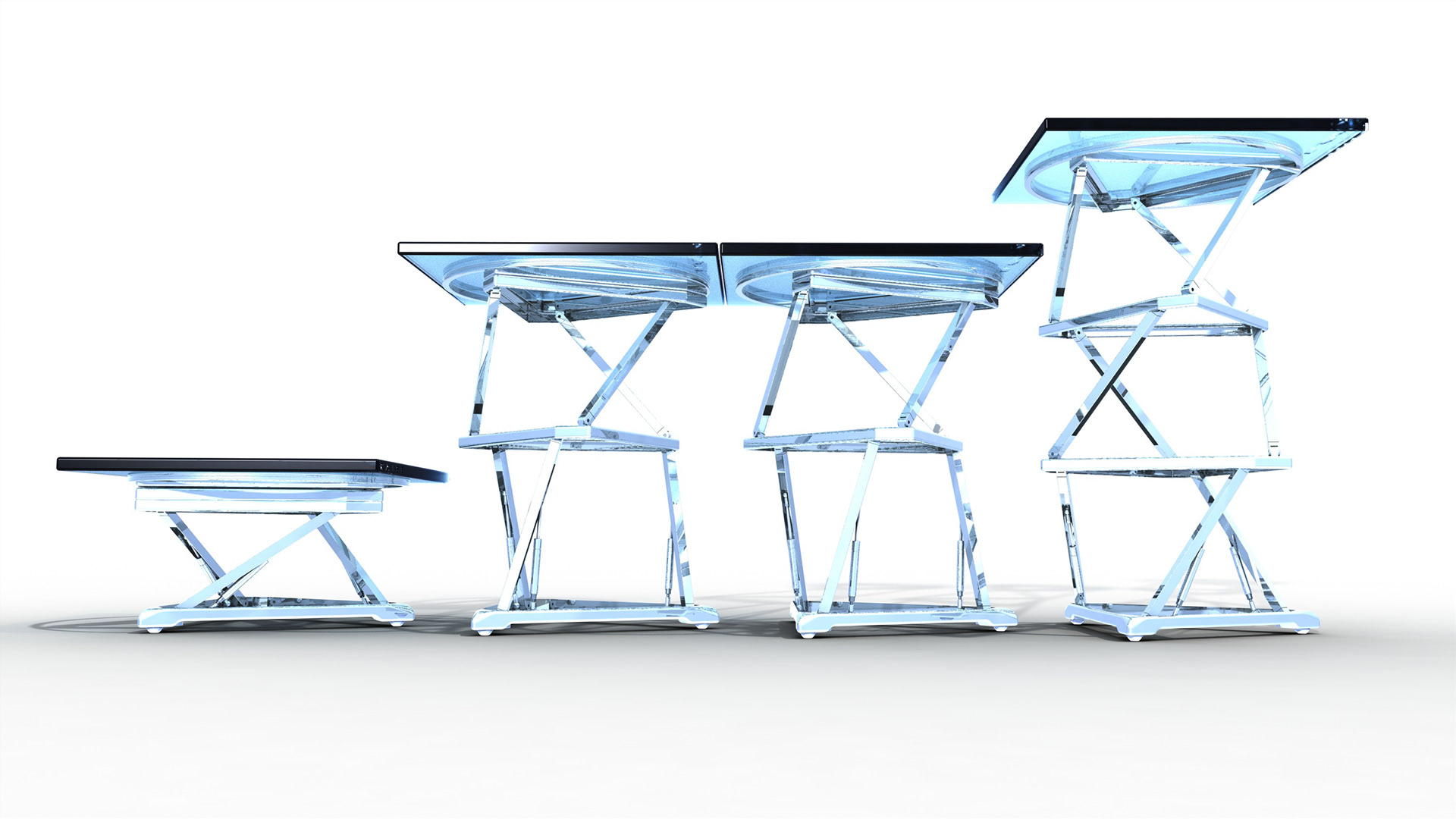

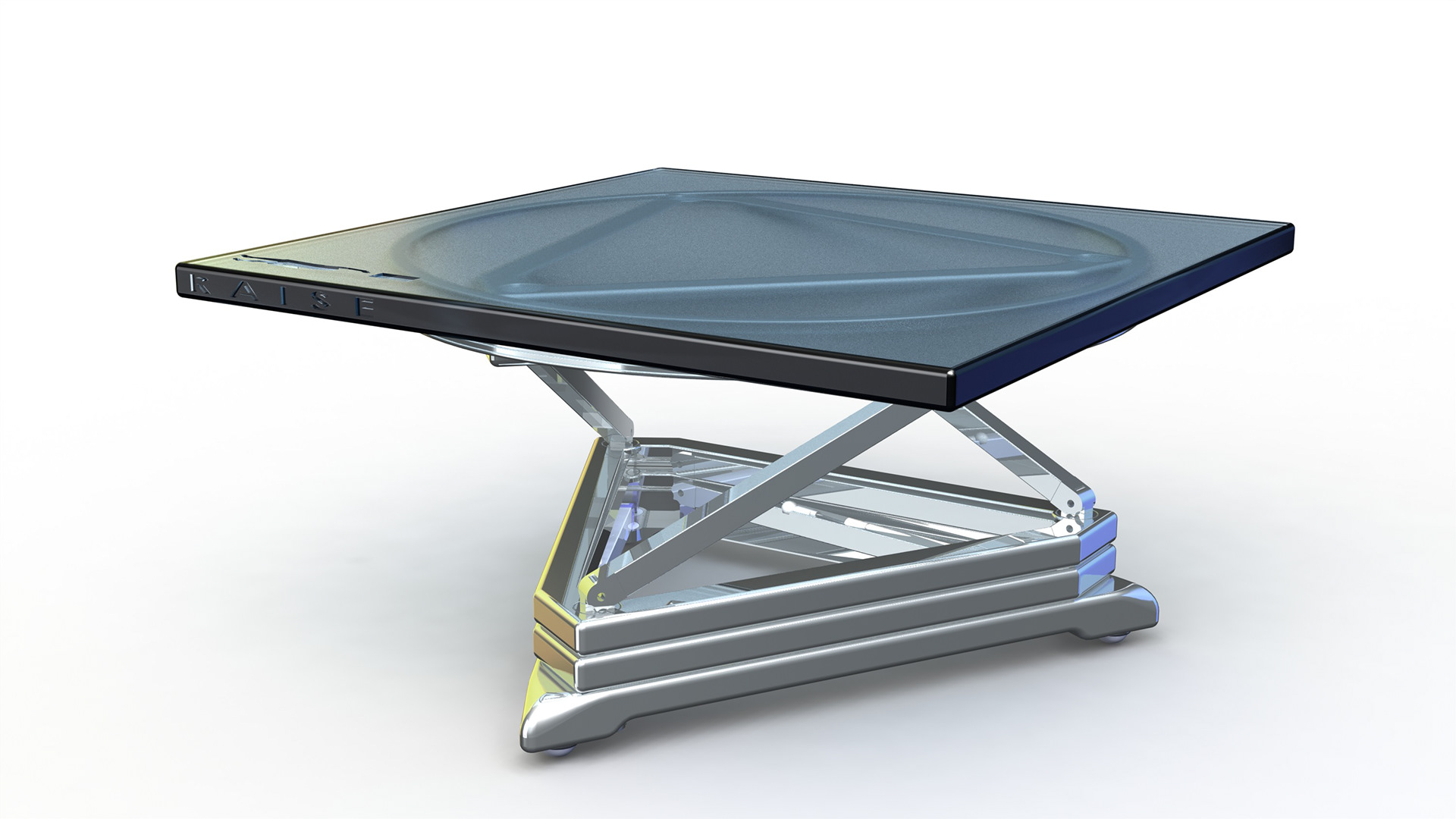

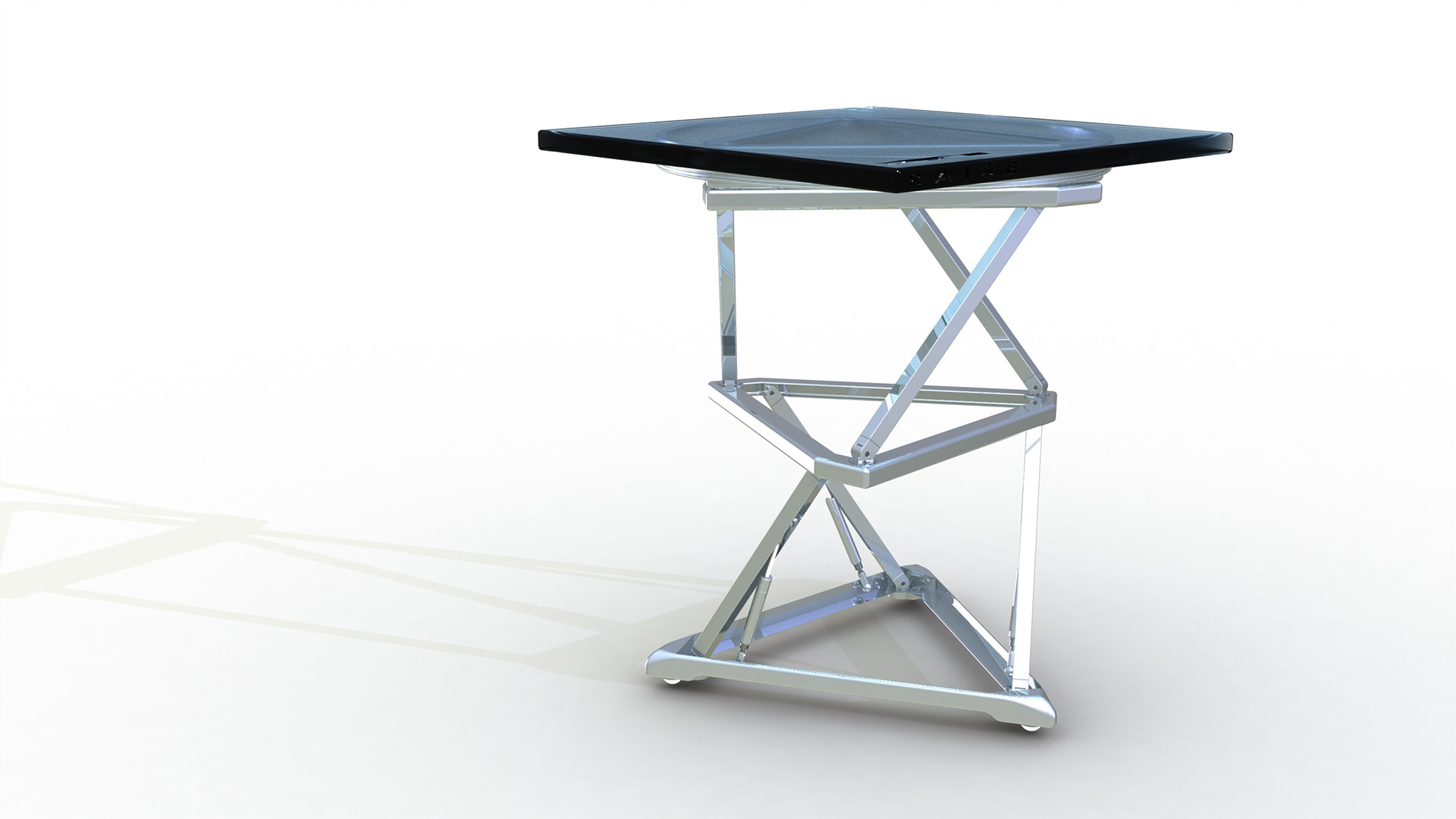

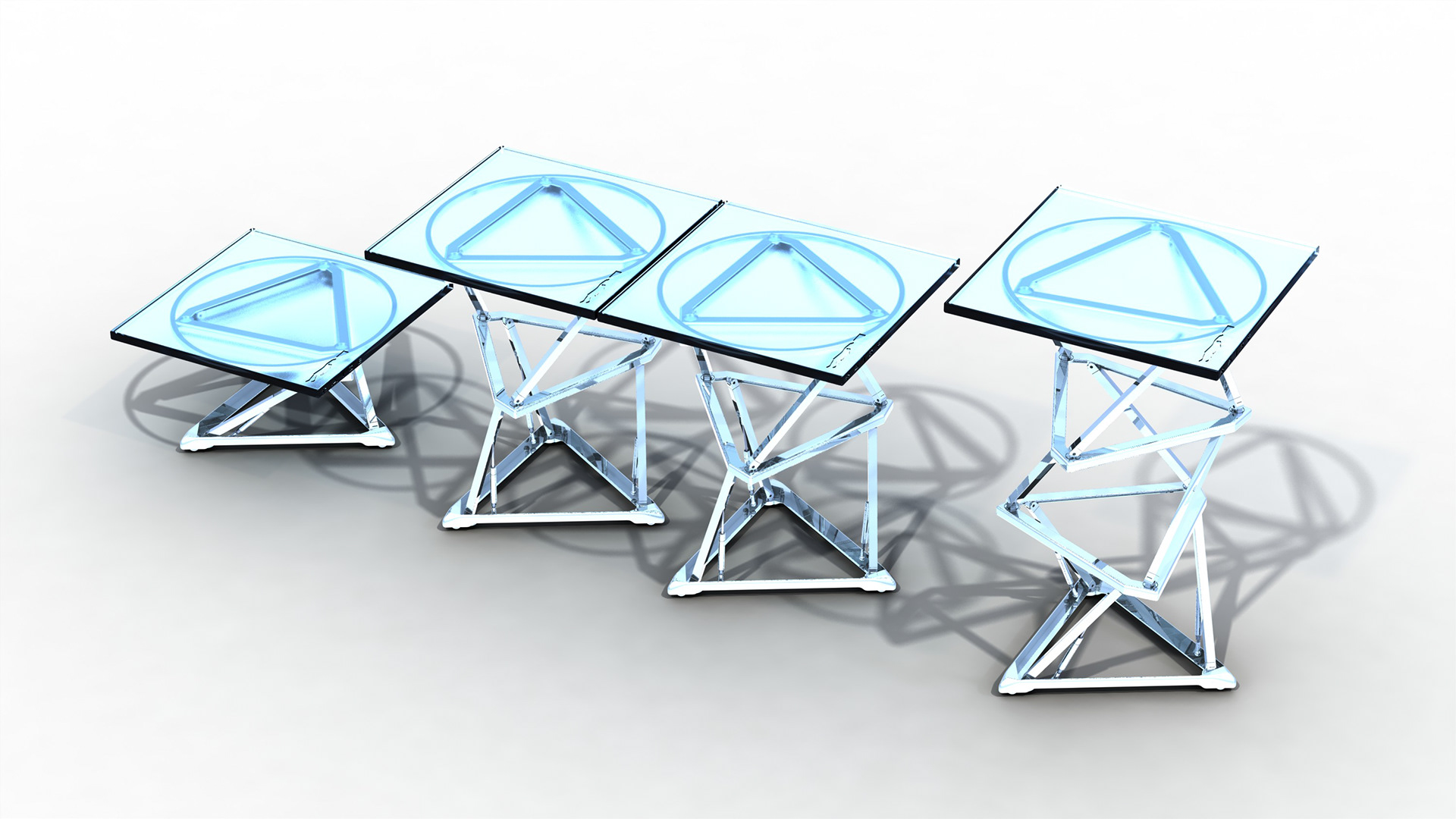

Concept development and CAD digital data of a multi-height commercial table for start-up Raise Design. The brief was to create a table that would be incredibly flexible in its' use, allowing a multitude of varible positions from coffee table, desk, and poser via a rotating tri-leg system that was repeatable, stackable.

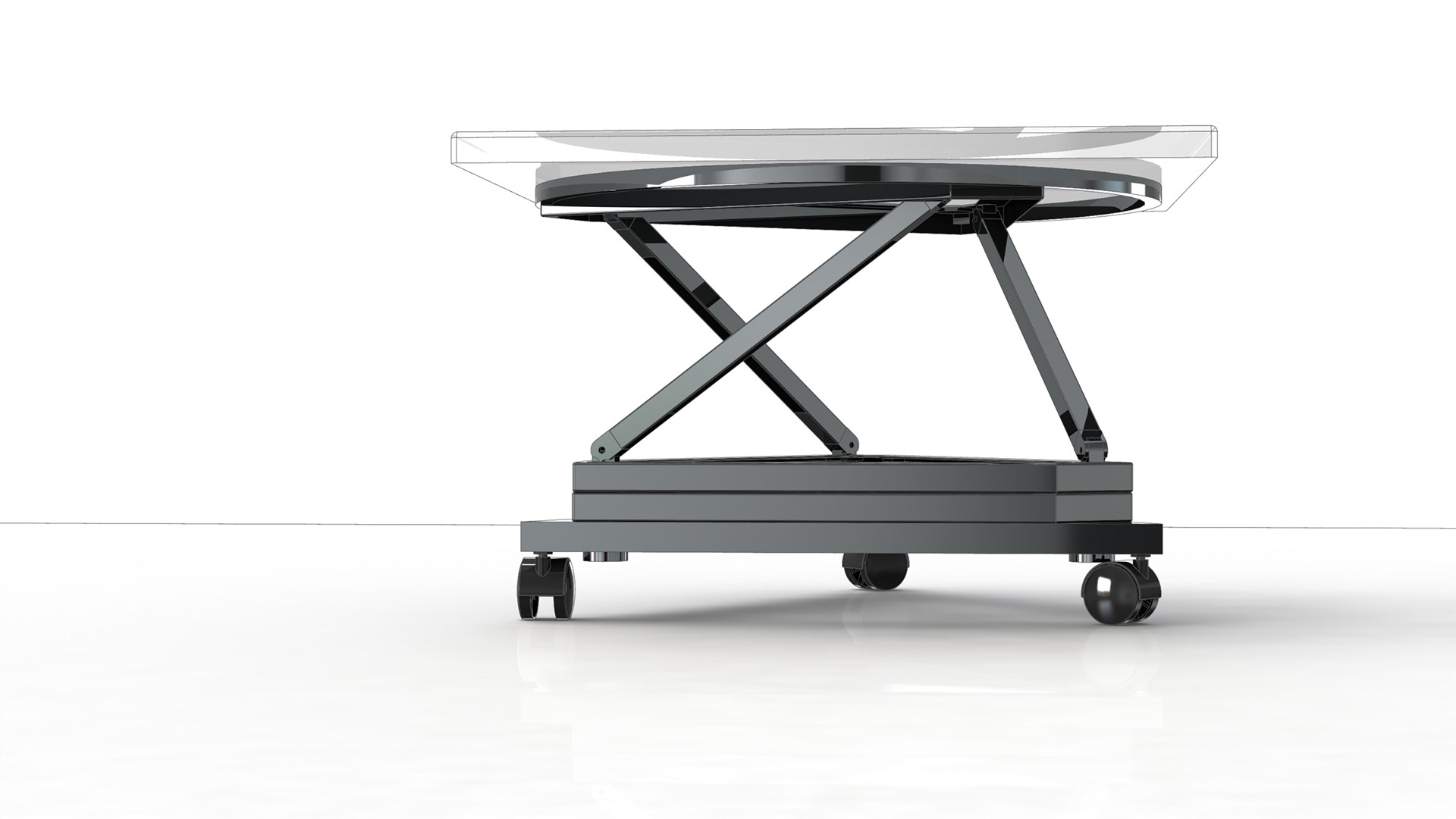

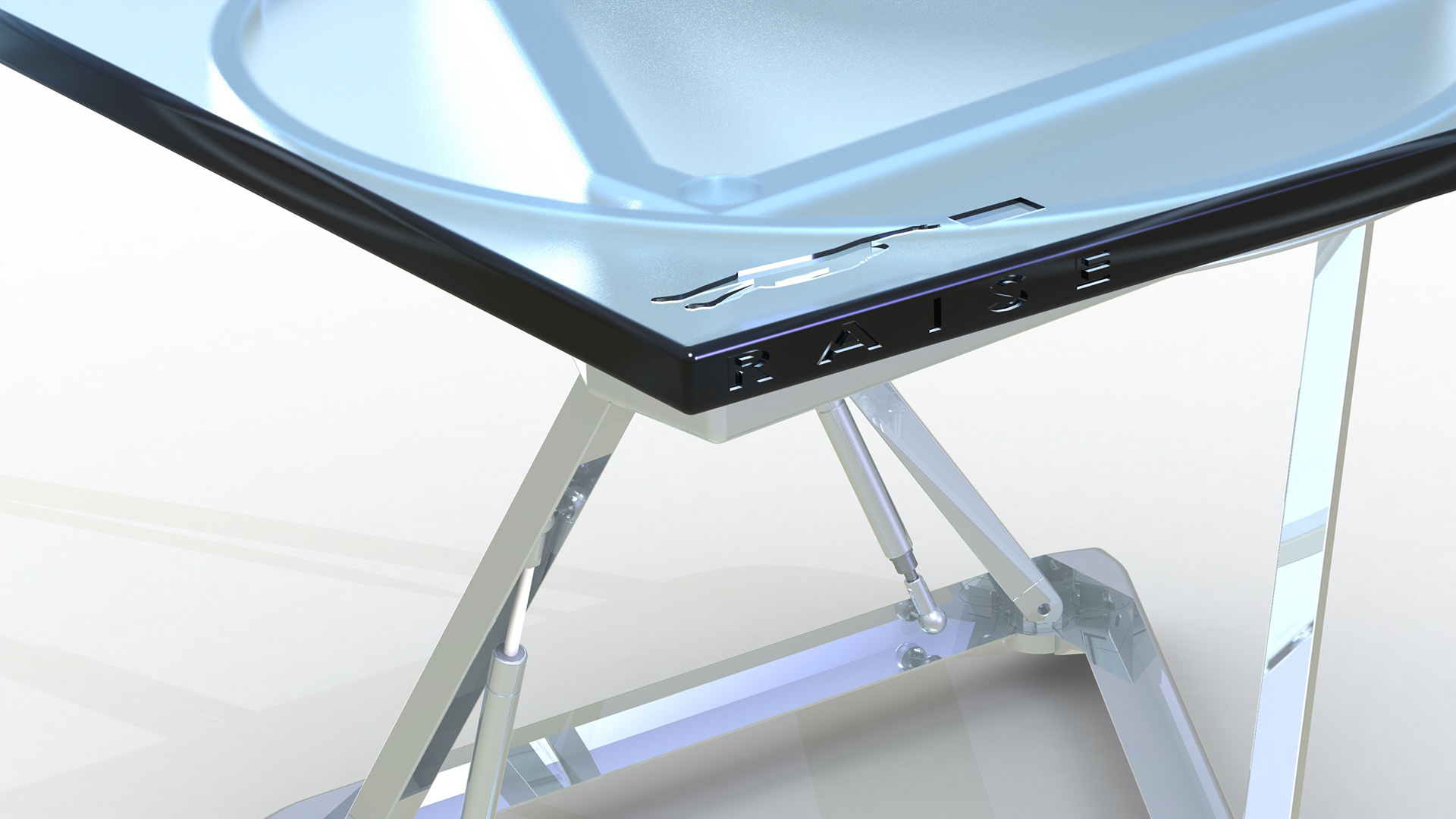

Investigations were conducted into various complex knuckle joints that had to remain fixed in situ but would rotate and allow height to be gained via two axis. A number of mock-ups were created a sheet metal solution was prototyped from CAD digital data that can be seen in the video on the Raise Design website, linked above.
