Design and development of an ethically focused patio heater and barbeque for Inflame Ltd.

Inflame Ltd, a start-up company were looking to design and develop a new type of patio heating device intended to target the market that would normally purchase gas based patio heaters. The product would burn ethically sourced materials.

Inflame5sketch



Inflame2 CAD

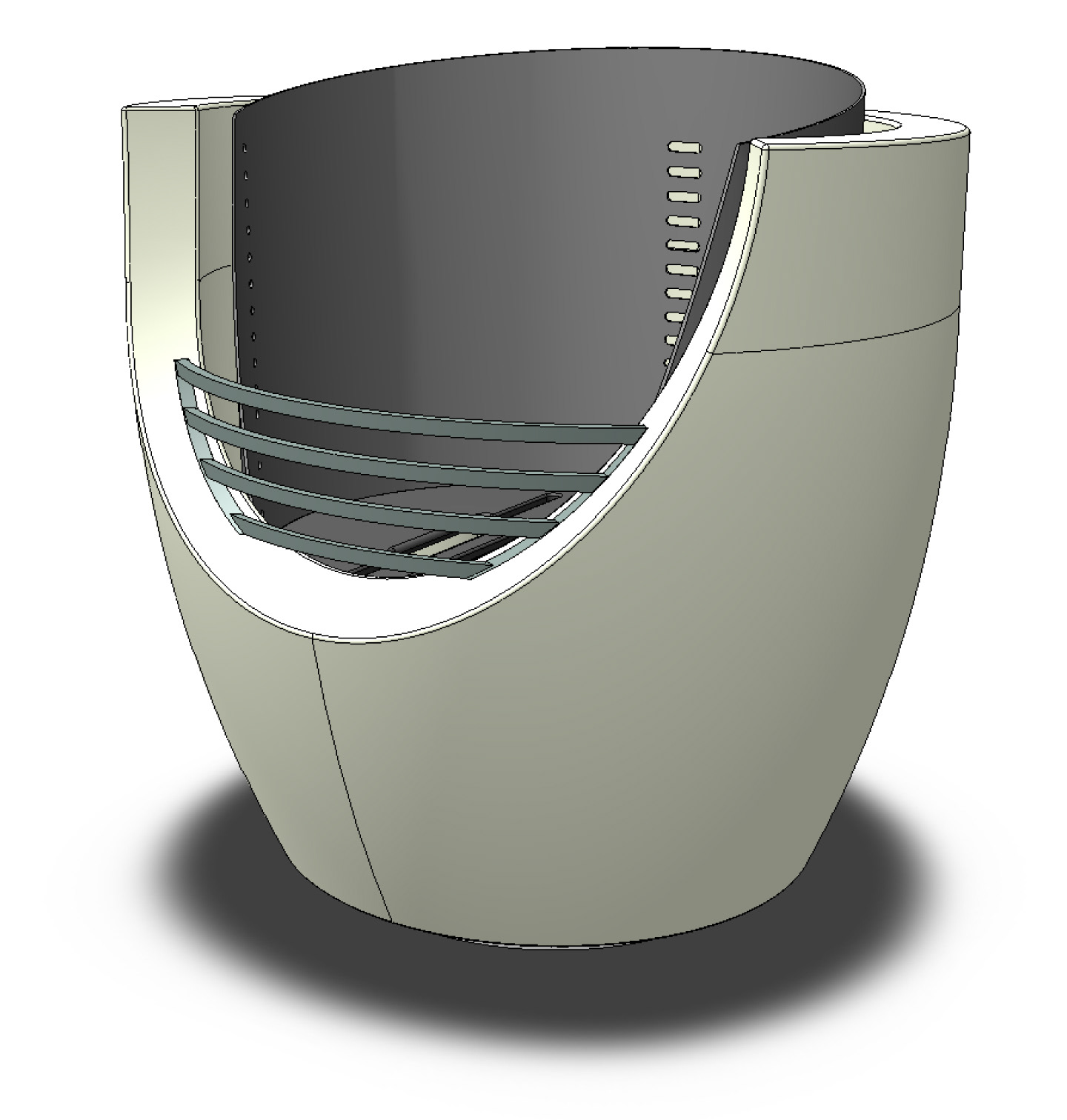

CAD Render of the Inflame



FDMScaleRP

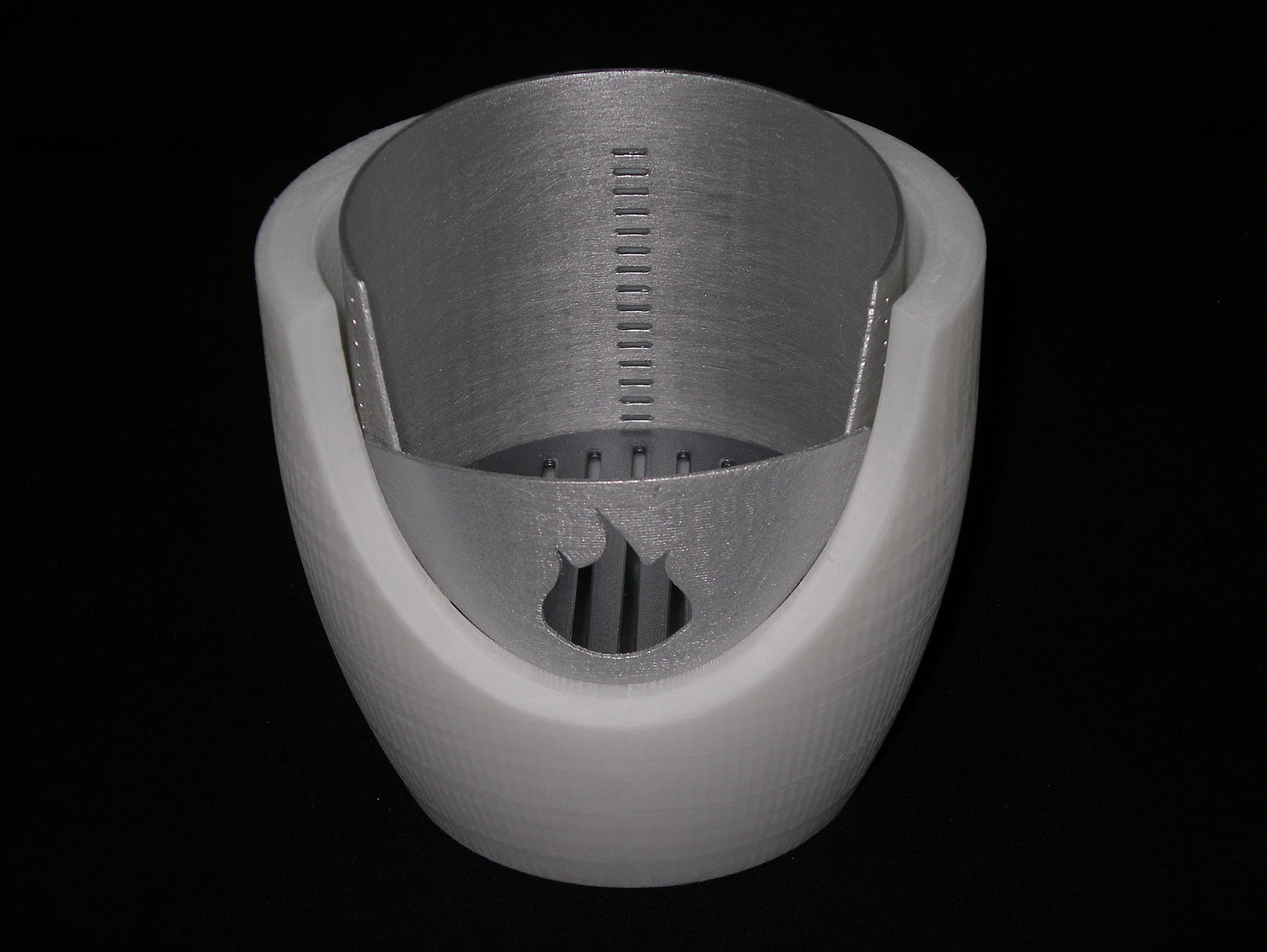

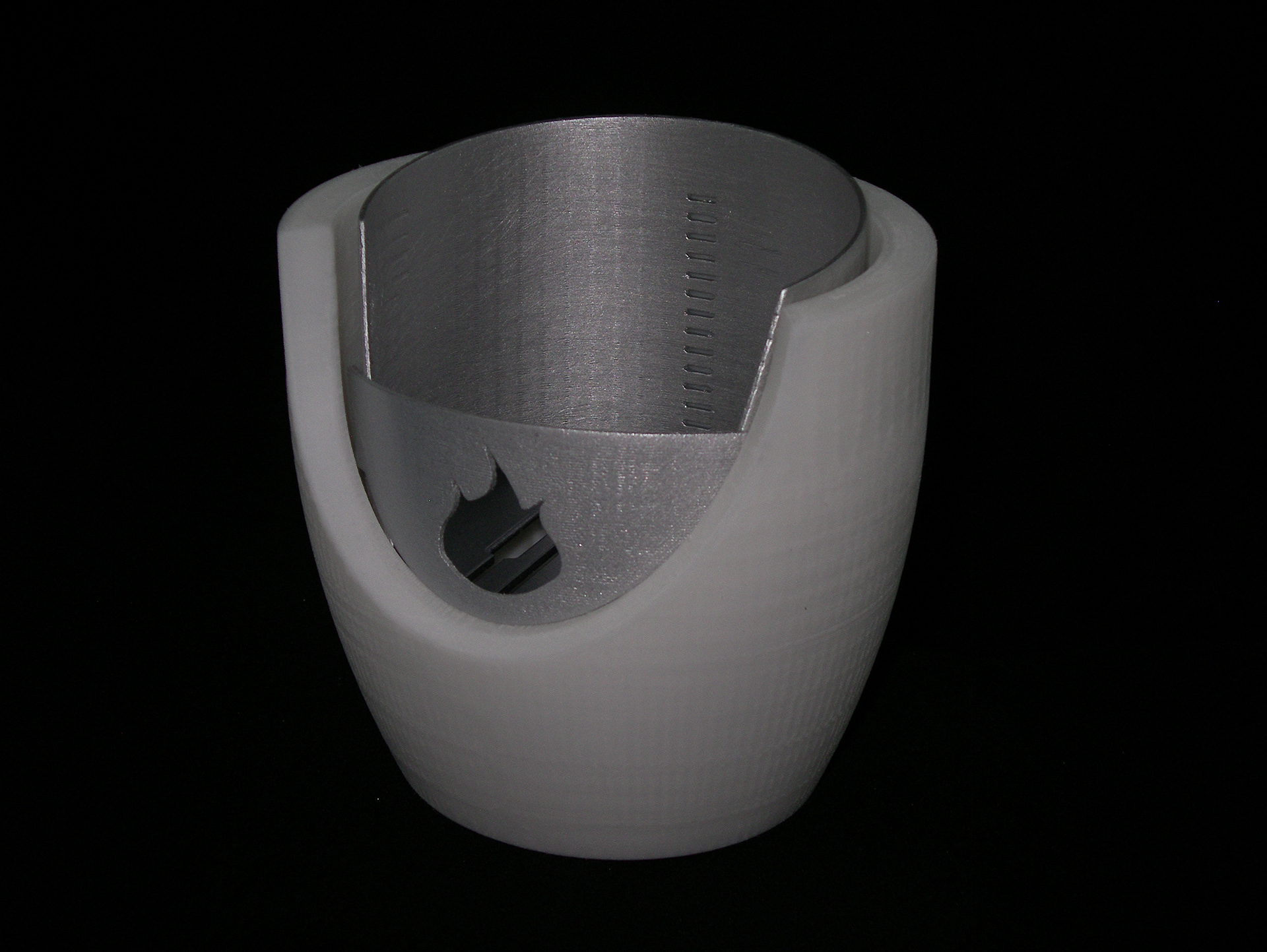

Fused Deposition Modelling (FDM) Prototype at 1/5 Scale built on a Stratysys ProdigyPlus.

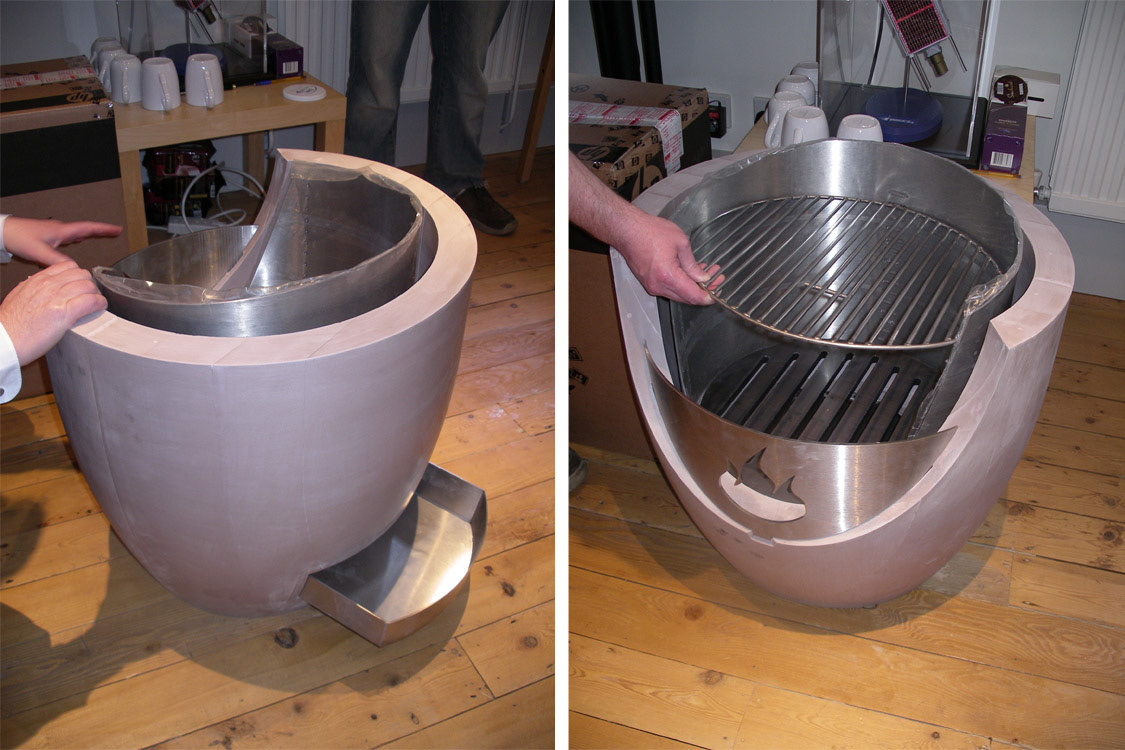

Inflame3Prototype

Inflame4Prototype

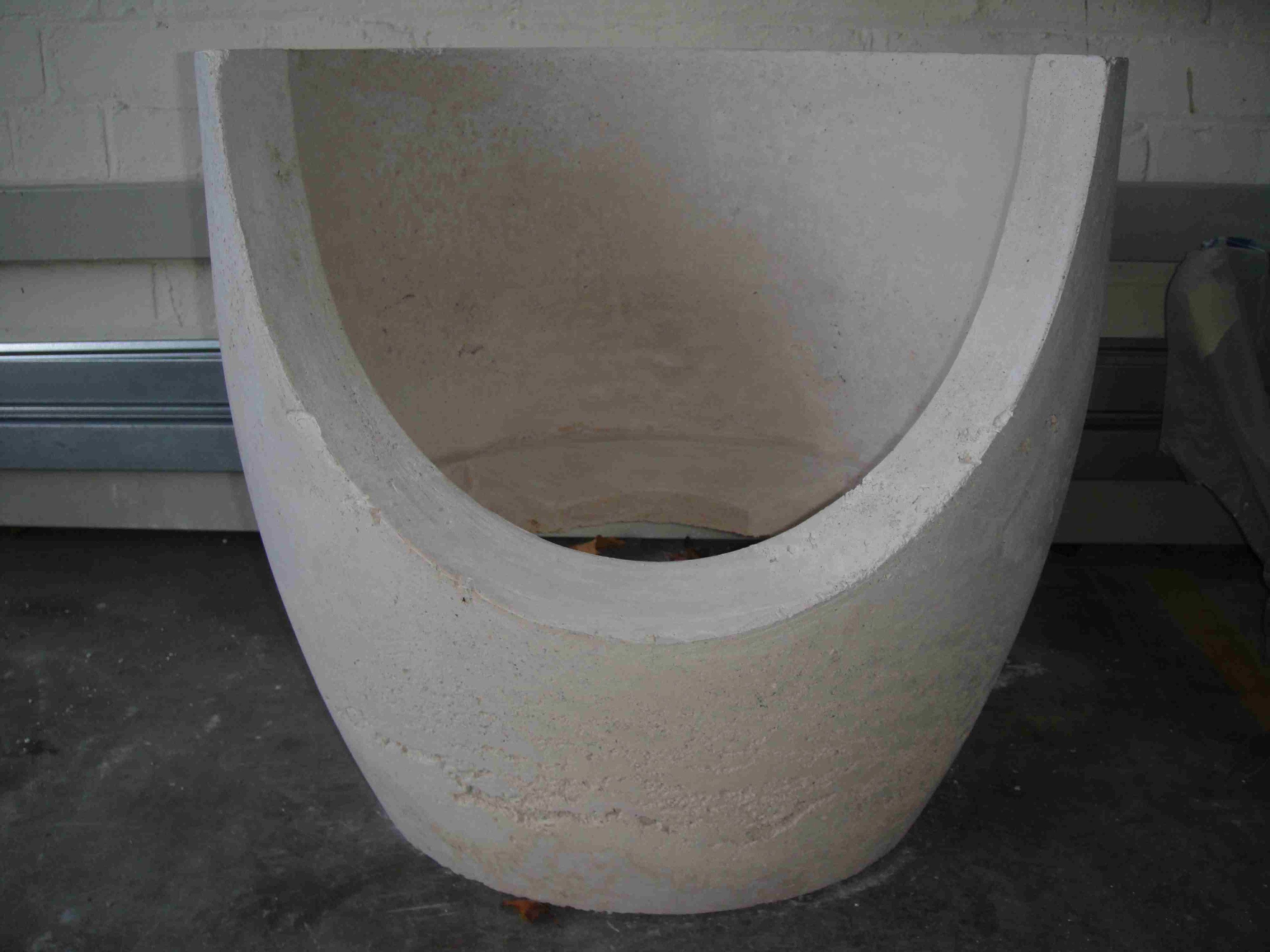

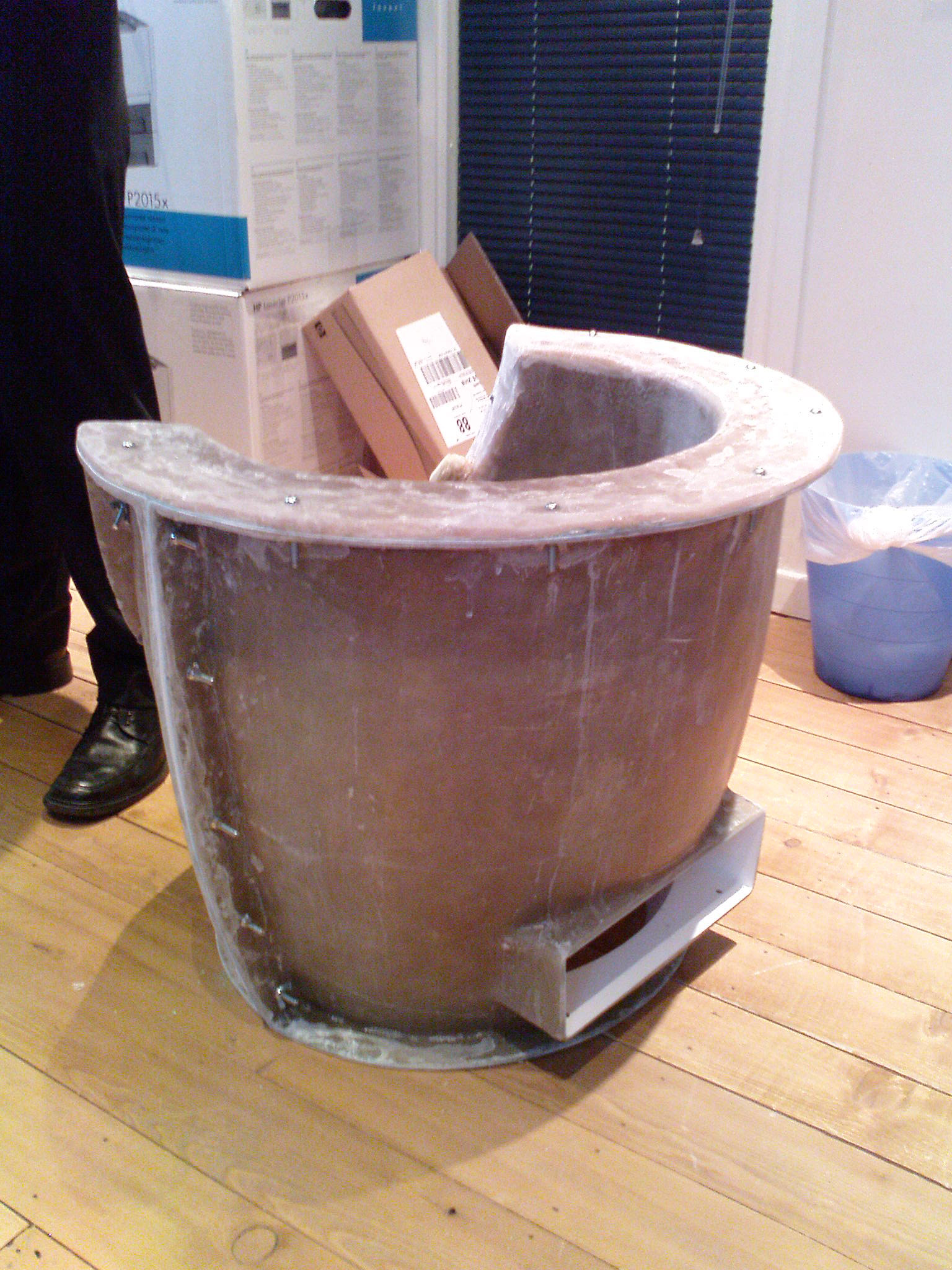

Inflame Ltd commissioned Ogle Models of Letchworth to produce a resin master part, CNC cut direct from the CAD and used to create a fibreglass mould. Stevenage Sheet Metal fabricated the sheet and wire steelwork that was laser cut and formed into the shape. The fibreglass mould was then used to form the outer shape in eco-airated concrete, as shown in the images below.

Inflame6Casting
